无声轻触开关6.2×6.2×5.5mm
规格:6.2×6.2×5.5mm
型号:GT-TC164X-HXXX-LX
包装:1000/袋
6.2×3.5无声轻触开关动作力:60、70、80gf;寿命100、500万次。
声明:有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据,只代表品赞电子内部的测试结果,如需详细测试方式,请联系品赞业务人员。
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
Electrical
MAXIMUM VOLTAGE: 15 VDC
MAXIMUM CURRENT DC: 20 mA
DIELECTRIC STRENGTH: 250 VA C (1mn)
CONTACT RESISTANCE: ≤ 100 mΩ
INSULATION RESISTANCE: ≥ 100 MΩ
BOUNCE TIME: ≤ 10 ms
SWITCH TRAVRL:0.20±0.1mm
Environmental
OPERATING TEMPERATURE: -40˚C to 85˚C

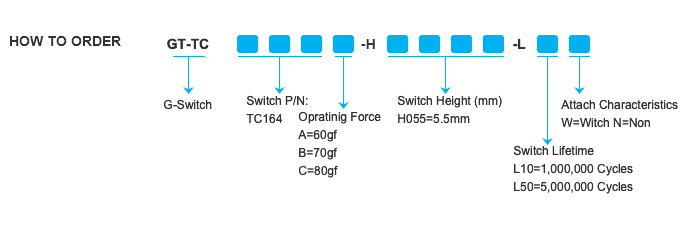

Molde code:
