直拨十二两档脚拨动开关

品牌：G-Switch/品赞

规格：14.3×3.5×3.5mm

型号：MS-42D13-GXXX

包装：500/袋

声明：有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据，只代表品赞电子内部的测试结果，如需详细测试方式，请联系品赞业务人员。

基本说明

Specification

FUNCTION: Momentary action

CONTACT ARRANGEMENT: 1P2T SLIDE SWITCH

Electrical

ELECTRICAL SPECIFICATIONS：DC 12V 0.5A DC 6V 1.0A

CONTACT RESISTANCE (CR)：100mΩMAX

INSULATION RESISTANCE(IR)：100M ohm 100V DC

COMPRESSIVE STRENGTH (WV)：AC 250V for 1min

STORAGE HUMIDITY：(40°C)<85%RH

ELECTRICAL LIFE：10,000 times.

SWITCH TRAVEL：2.0±0.05mm

Environmental

OPERATING TEMPERATURE: -20˚C to +70˚C

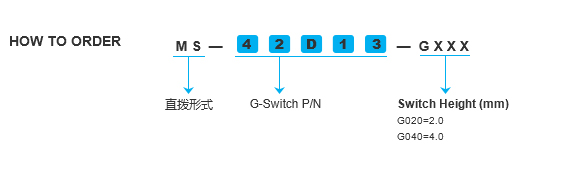

Molde code:

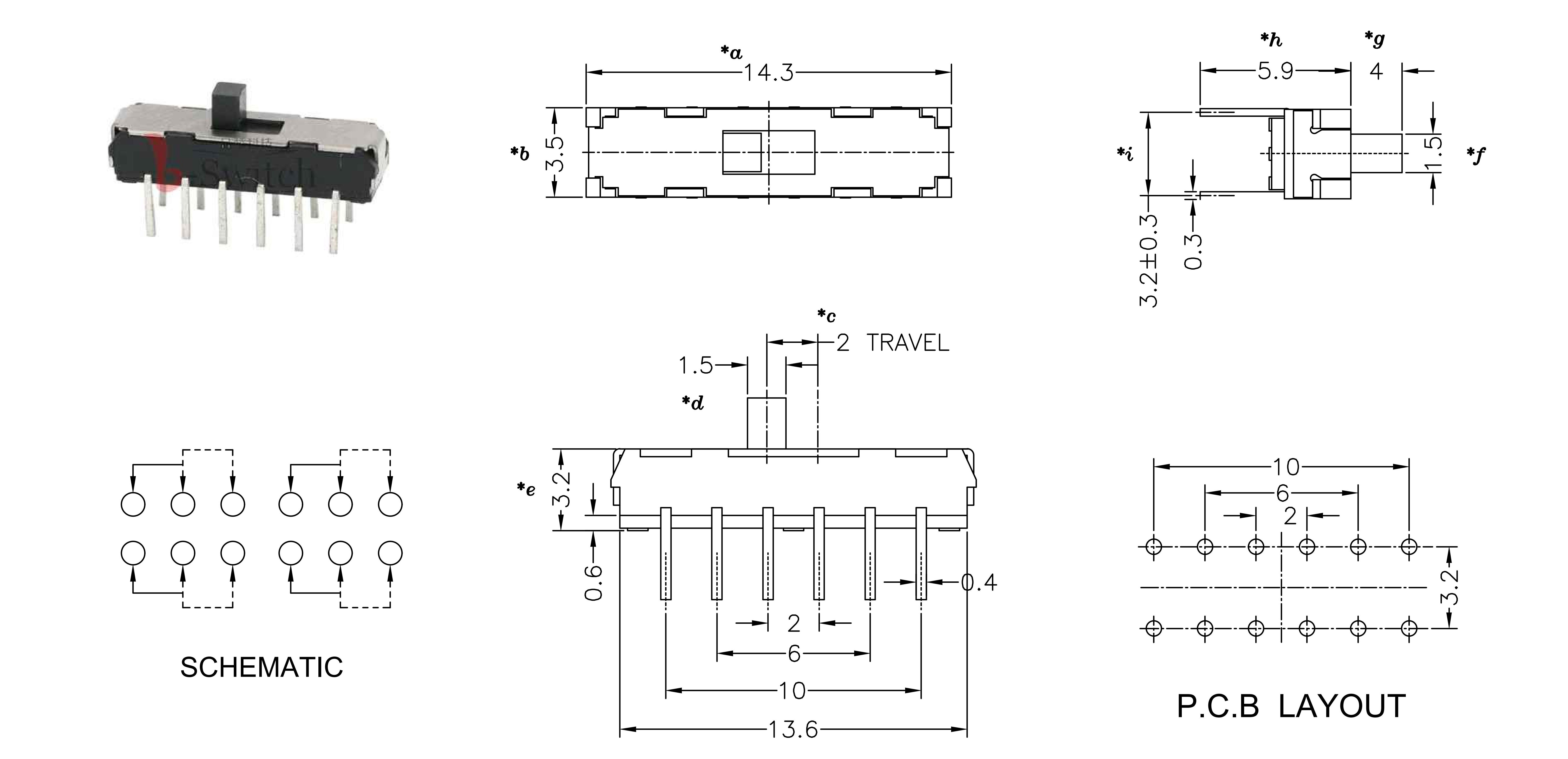

尺寸图

产品说明

微型拨动开关使用说明书:

ITEM 项目		TEST CONDITIONS 测试条件		PERFORMANCE 规格
4.1	CONTACT RESISTANCE 接触电阻	MEASURED AT 1KHz SMALL CURRENT(100mA OR LESS) 在1KHz微小电流(100mA以下)测试.		100mΩMAX. 100毫欧以下
4.2	INSULATION RESISTANCE 绝缘电阻	APPLY A VOLTAGE OF 500V DC FOR 1 MIN. TO FOLLOWING PORTIONS AFTER WHICH MEASUREMENT SHALL BE MADE. (1)BETWEEN BODY AND TERMINAL。 (2)BETWEEN TERMINALS。输入500V DC 电压1分钟,按以下接触方法测试: (1)排脚相互之间。 (2)排脚与外壳之间。		100MΩMIN. 100兆欧以上.
4.3	DIELECTRIC STRENGTH 耐电压	AC 500V rms(50-60Hz)FOR 1 MIN TRIP CURRENT:0.5mA (1)BETWEEN TERMINALS. (2)BETWEEN INDIVIDUAL TERMINAL AND FRAME. 输入AC 500V(50-60Hz)电压,1分钟感度电流为0.5mA, 按以下接触方法测试: (1)排脚相互之间 (2)排脚与外壳之间.		WITHOUT DAMAGETOPARTS ARCING OR BREAKDOWN ETC 没有绝缘破坏等异常
5、MECHANICAL CHARACTERISTICS (机械性能规格)
ITEM 项目		TEST CONDITIONS 测试条件	PERFORMANCE 规格
5.1	OPERATING FORCE 作动力	MEASUREMENT SHALL BE MADE AT THE NEAREST POINT OF THE COMPONENTOR AT THE POINT 3mm FROM THE TIP OF THE ACTUATOR(KNOB). 在距离胶柄前端3mm作测定点.	200gf±100gf
5.2	TERMINAL STRENGTH 端子强度	A STATIC LOAD OF(500gf)SHALL BE APPLIED TO THE TERMINAL FOR 15 SEC,IN ANY DIRECTON. 在排脚前端任意一个方向加500gf力度测试,时间为15秒.	MECHANICAL AND ELECTRICAL CHARACTERISTICS SHALL BE SATISFIED WITHOUT LOOSENESS OF ACTUATOU. 在端子中没有裂开,松动等异常, 满足于机械、电器性能。
5.3	DISPLACEMENT OF ACTUATOR (KNOB) 柄强度	A STATIC LOAD OF 10N(1Kgf)SHALL BE APPLIED TO THE TOP OF THE ACTUATOR(KNOB)AND THEN DESPLACEMENT SHALL BE MEASURED TO THE DIRECTION OF THE ARROW. 在柄的前端施加1Kgf的力度,位移应沿印记的方向上定.	THE LEVER SHALL HAVE NO SERIOUS DEFORMATION AND FUNCTION IS NORMALLY. 柄部无严重变形,可以正常工作.

6、ENDURANCE CHARACTERISTICS (耐久性) :

ITEM 项目

TEST CONDITIONS 测试条件

PERFORMANCE 规格

6.1

LIFE
TEST
寿命试验

WITHOUT LOAD：
AN ACTUATOR SHALL BE SUBJECT TO
10,000 CYCLES AT A SPEED OF 15 TO
18 CYCLES
FOR 1 MIN.
无负荷:
操作者以每分钟15—18回的频率作10，000
回之无负荷测试.

(1) CONTACT RESISTANCE(接触电阻)
200mΩ MAX.200毫欧以下.
(2) INSULATION RESISTANCE(绝缘电阻)
50MΩ MIN. 50兆欧以上.
(3) WITHSTAND VOLTAGE(耐电压)
AC 500V,1 MINUTE.AC 500V 1分钟
(4) OPERATING FORCE(作动力)
±30%INITIAL VALUE.
变化范围初始值±30%
(5) WITHOUT DAMAGE TO PARTS
ARCING OR BREAKDOWN ETC.
(测试后外表无损伤,并且满足机械性能)

6.2

SOLDERA-
BILITY
TEST
可焊性试验

THE TOP OF THE TERMINALS SHALL BE
DIPPED 2mm IN THE SOLDER BATH OF
260±5℃ FOR 3±0.5 SECONDS.
端子顶部被浸入锡焊池中2mm深,温度为
260±5℃,时间为3±0.5秒.

THE AREA OF SOLDERING
SHOULD BE OVER 75%
焊接面积要有75%以上.

6.3

RESISTANCE
TO SOLDERING
HEAT TEST
耐焊性试验

(1)TEMPERATURE AND IMMERSING TIME
温度及浸锡时间

	TEMPERATURE 温度（℃）	TIME 时间（S）
MANUAL SOLDERING 手焊	350±10	3±0.5

(2)IMMERSION DEPTH:
IMMERSION DEPTH UP TO THE SURFACE
OF THE BOARD THICKNESS OF PRINTED
WIRING BOARD 1.6mm.
浸锡深度：
浸锡深度至基板(PCB)表面，基板厚度为1.6mm.

THERE SHALL BE NO
DEFORMATION OR CRACKS IN
MOLDED PART.
外观无异常,满足于机械、电器性能。

6.4

COLD TEST
耐冷试验

THE SWITCH SHALL BE STORED AT A
TEMPERATURE OF -25±3℃ FOR48HOURS.
THEN THE SWITCH SHALL BE MAINTAINEDAT
STANDARD ATMOSPHERIC CONDITIONSFOR
1 HOUR AFTER WHICH
MEASUREMENTSHALL BE MADE.
放置在温度-25±3℃中48小时后,再将放置在常
温常濕的环境中1小时后进行测试.

ITEM 项目		TEST CONDITIONS 测试条件	PERFORMANCE 规格
6.5	HEAT TEST 耐热试验	THE SWITCH SHALL BE STORED AT A TEMPERATURE OF 70±2℃ FOR 48 HOURS. THEN THE SWITCH SHALL BE MAINTAINED AT STANDARD ATMOSPHERIC CONDITIONS FOR 1 HOUR AFTER WHICH MEASUREMENT SHALL BE MADE. 放置在温度70±2℃中测试48小时后,再将放置在常温常濕的环境中1小时后进行测试.	THERE SHALL BE NO DEFORMATION OR CRACKS IN MOLDED PART. 外观无异常,满足于机械、电器性能.
6.6	HUMIDITY TEST 潮濕试验	THE SWITCH SHALL BE STORED ATA TEMPERATURE OF 40±2℃ AND A HUMIFITY OF 90% TO 95% FOR 96 HOURS.THEN THE SWITCH SHALL BE MAINTAINED AT STANDARD ATMOSPHERIC CONDITION FOR 1 HOUR AFTER WHICH MEASUREMENT SHALL BE MADE. 放置40±2℃的相对湿度为90%～95%环境中96小时后,再将放置在常温常濕的环境中1小时后进行测试.
6.7	STANDARD ATMOSPHEIC CONDITIONS 测试标准状态	UNLESS OTHERWISE SPECIFIED. THE STANDARD RANGE OF ATMOSPHERIC CONDITIONS FOR MAKING MEASUREMENTS AND TESTS ARE AS FOLLOWS: (1) AMBIENT HUMIDITY:5℃ TO 35℃ (2) RELATIVE HUMIDITY:45% TO 85% (3) AIT PRESSURE :86Kpa TO 106Kpa 在没有指定的情况下测试温度、湿度、气压如下: (1) 温度为5℃—35℃. (2) 湿度为45%—85%. (3) 气压为86Kpa—106Kpa.
6.8	PRACTICAL TEMPERATURE RANCE 使用温度范围	-16℃～+60℃. 在-16℃～+60℃温度内使用.
