防水轻触开关6.2×6.2×H
规格:6.2×6.2×H

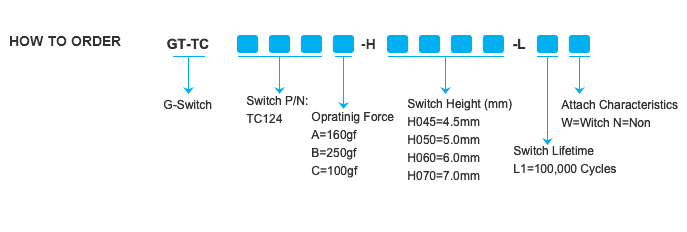

型号:GT-TC124X-HXXX-L1
包装:1000/盘
6.2贴片式防水型轻触开关,防水等级IPX7,柄长4.5-7.0mm,按键寿命10万次。
声明:有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据,只代表品赞电子内部的测试结果,如需详细测试方式,请联系品赞业务人员。
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
Electrical
MAXIMUM VOLTAGE: 15 VDC
MAXIMUM CURRENT DC: 20 mA
DIELECTRIC STRENGTH: 250 VA C (1mn)
CONTACT RESISTANCE: ≤ 100 mΩ
INSULATION RESISTANCE: ≥ 100 MΩ
BOUNCE TIME: ≤ 10 ms
SWITCH TRAVRL:0.35±0.1mm
WATER RESISTANCE:IPX7
Environmental
OPERATING TEMPERATURE: -40˚C to 85˚C
Molde code:
